In the technical age of modern developed electronic industry, the humidity in the air has become the main cause for those inferior products. So, to control humidity in the air of the workshop effectively is an important way to improve productivity. Normally, in semiconductor and electronic industry, the key procedure of SMT, during the heating process, fine cracks and non-weld joint may happen on IC (ex. PBGA, BGA, TQFD) because of the humidity.
Material:1.2mm cold rolled plate of steel,4mm tempered glass
Capacity:480liters
Outer size:W600*D700*H1276mm
Inner size:W596*D670*H1218mm
Available in Color: Ivory & Black
| Model No. | Relative Humidity range(RH) |
Average Power Consumption |
Shelves | Voltage | Display | Weight | |
| EDC480A | Normal Low humidity | 20%-60%RH | 16W | 3 | 110-200/240V | LCD | 130kgs. |
| EDC480LA | Ultra low humidity | 1%-40%RH | 32W | ||||
| EDC480LA-N | Nitrogen Dry Cabinet | 1-60%RH | 16W |
Application:Suitable for storing: Anti-oxygen materials, Chip, IC, Semiconductor, Precision components and instruments, Military industry, Lens, Non-ferrous metal, BGA, SMT,SMD, Module, Films, Wafers, Lab chemical and medicine etc.
FUNCTIONS:
* Dehumidification
* Anti-mildew
* Anti-oxidation
* Anti-fading
* Anti-corrosion
* Anti-aging
* Dust prevention

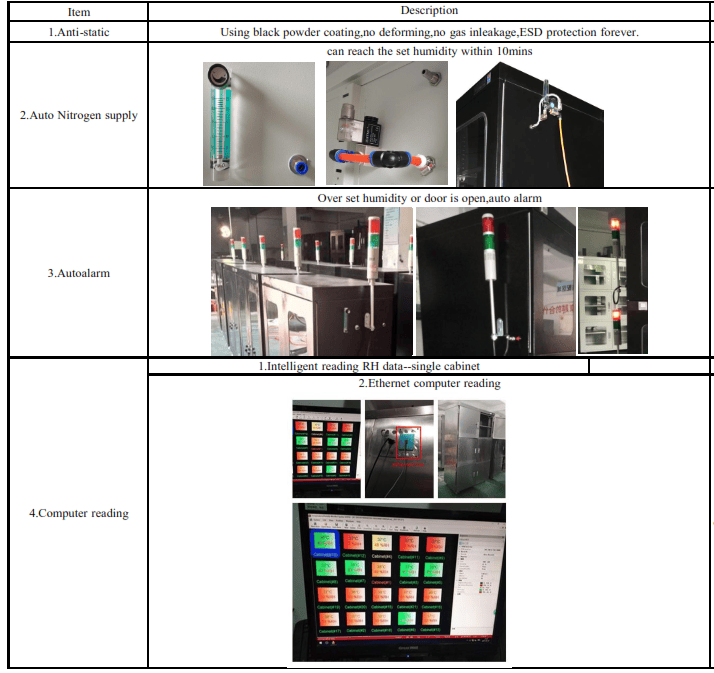

OPTIONAL UPGRADE:
